Site 1– Caterpillar , model 3512B, 1100 kw standby, sound attenuated engine room.

1100 kW Caterpillar 3512B standby emergency generator installation with hockey puck super critical silencer.

We’ve built (and designed) many, many standby and emergency generator systems– we can build one for you!

Call us at 707-552-7318.

Here’s a few photos of representative generator systems we’ve built:

· We work with all major manufacturers.

· Single source contact for design, permitting, building, maintaining your  system.

· We hold the following California Contractor Licenses (#662686)                Class A– Gen Engineering       Class  B– Gen Building       Class C-10– Gen Electrical Asbestos Removal             Hazardous Materials

· We hold ICC Underground Storage Tank (UST) Inspector license # 8045718-UI– This certificate is required to install USTs in California.

· We’re a UL listed panel shop.

Site 1– Cat 3512B, 1100 kw standby


Note that this super quiet installation uses the factory provided skid mounted radiator fan– no parasitic loads!

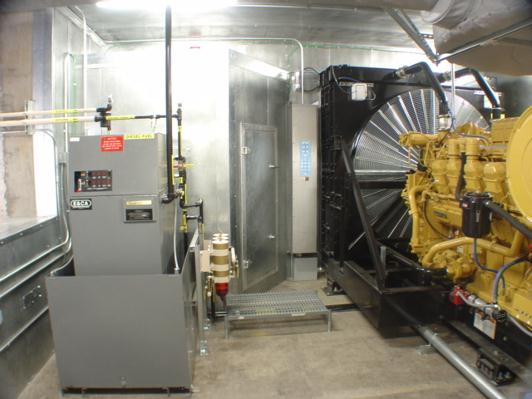

A double contained UL 142 compliant daytank is shown with duplex 30 micron Racor fuel/water separators adjacent– a bullet proof installation!


An Avtron radiator mount loadbank is incorporated.

Phone: 855-no-go-off



Fax: 707-552-0551


Contact us:

Permanent Generator Installations

Diesel Generator Installation Contractor

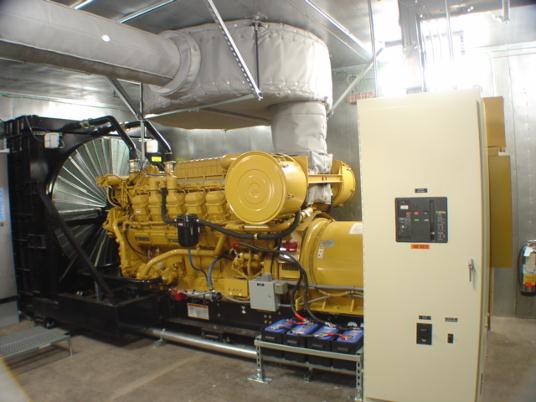

1100 kW Caterpillar 3512B emergency standby diesel generator with double contained UL listed EC&A daytank.
1100 kW standby emergency diesel generator installation showing air inlet, exhaust stack, control panel and load bank controls.1100 kW standby emergency diesel generator installation showing custom built main breaker assembly and control panels.

Site 1– CAT 3512B, 1100 kW standby


The air inlet area to the engine room is shown here– the engine exhaust stack is shown crossing the ceiling.


The load bank controls are housed within the rectangular enclosure shown on the center column.

Site 1– CAT 3512B, 1100 kW standby

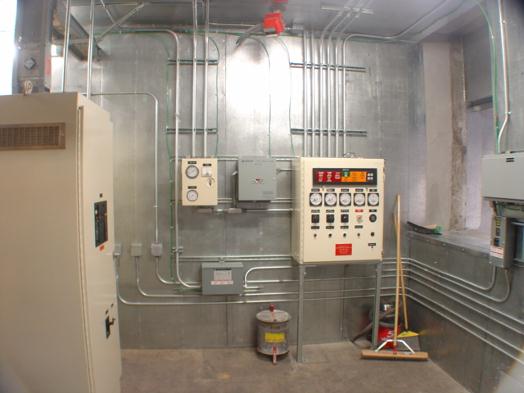

We designed and built the illustrated control panel, the smaller gage panel on the left side.


We also designed and built the generator main breaker assembly– check our other photos for examples of our custom busbar fabrication workmanship and panel construction.

Check our project list for many other installation photos!
